Лист оцинкованный - техническая информация:

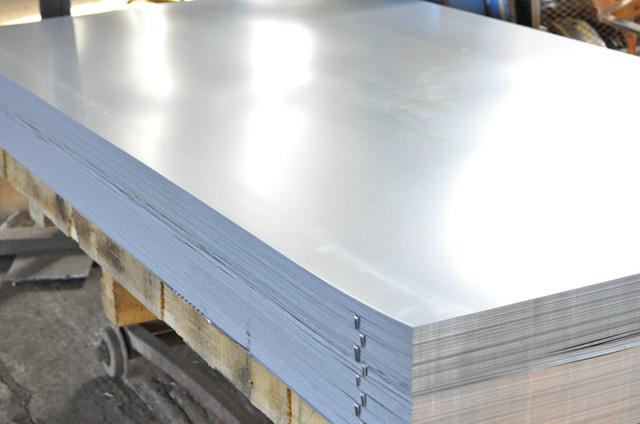

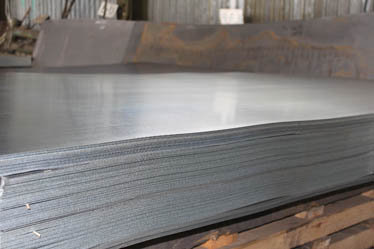

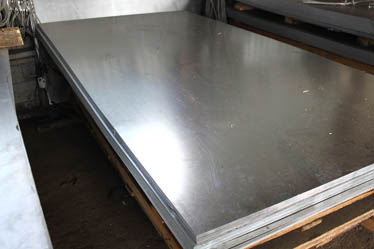

Galvanized sheet

View price - Galvanized sheet

Galvanized sheetGalvanized sheet - is rolled, which is made from high-quality and ordinary quality carbon steel, from galvanized sheet steel. Produce a width of 500mm or more, a thickness of from 0.5 mm to 2.5mm according to GOST 14918-80 galvanized sheet and from 0.3 mm to 4.9 mm according to GOST R 52246-2004.

Galvanized steel sheet is manufactured according to the standards:

ГОСТ 14918-80 GOST 14918-80 Galvanized thin sheet steel from continuous lines

GOST R 52146-2003 Thin cold-rolled and cold-rolled hot-dip galvanized steel sheet with polymer coating from continuous lines.

GOST R 52246-2004 Hot rolled galvanized sheet metal

GOST R 54301-2011 Thin cold-rolled electrolytically galvanized polymer- coated sheet with continuous lines.

GOST 24982-81 Rolled sheets of corrosion-resistant, heat-resistant and heat-resistant alloys.

GOST 17066-94 Rolled sheet steel of high strength steel.

TU 14-1-4695-89 Electrolytically galvanized steel sheet with a polymer coating

TU 14-1-4766-90 Electrolytically galvanized steel sheet.

TU 14-1-4792-90 Cold-rolled and hot-dip galvanized with an organic coating.



Zinc protects the metal from corrosion and ultraviolet exposure, has an electrochemical resistance, which gives the metal durability and reliability. Due to this, galvanized iron sheet (galvanized) is widely applicable in many industries. It is used in construction and assembly works, in mechanical engineering, automotive industry, production of various equipment and machinery, in shipbuilding, in the construction of granaries, as well as galvanized sheet is used as a decorative metal sheet for facing facades .


One of the main applications is the roofing from galvanized metal sheets , for the manufacture of tin and gutter products, galvanization is indispensable in the manufacture of washing machine and refrigerator housings, drinking water tanks, guaranteeing the coating a long service life.

The production of galvanized metal sheets is carried out in several stages. At first, the sheet undergoes heat treatment, degreasing, pickling, washing, only after that it is immersed in the electroplating solution, as a result of which a ferro-zinc alloy is formed on the metal surface, which leads to an enhancement of the anti-corrosion property. Then the sheet or roll is cooled.

In Russia, a galvanized sheet is produced: OAO "Novolipetsk Metallurgical Plant", OAO "Magnitogorsk Metallurgical Plant".

Sheet galvanized sheet with continuous lines GOST 14918-80

This standard applies to cold rolled steel and cold-rolled steel, galvanized in hot-dip galvanizing units. Galvanized steel is produced in widths from 710 to 1,800 mm, inclusive, and in thicknesses from 0.5 mm to 2.5 mm, inclusive. Dimensions, maximum deviations and other characteristics of the range must comply with GOST 19904 (hot rolled sheet).

A thin galvanized metal sheet has following types of groups:

Металлоторг. Лист оцинкованный Металлоторг. Лист оцинкованный
1) by appointment:

- for cold forming - XIII
- for cold profiling - HP
- for painting - PC
- оgeneral purpose - OH

2) on the ability to extract (for the group XIII):

- normal exhaust - N
- deep drawing - G
- very deep drawing - VG

3) on the uniform thickness of the zinc coating:

- with normal thickness variation - NR
- with reduced thickness variation - SD

4) by the presence of the pattern:

- with a crystallization pattern - KR
- without crystallization pattern - MT

5) the thickness of the zinc coating on steel grades:

- the raised steel grade (П), 1 steel grade, 2 steel grade.

steel grades of zinc coating thickness GOST 14918-80

Thickness steel grade

Weight per square meter of coating layer on both sides, g

Coating thickness, micron

P (increased)

Over 570 to 855 included but

Over 40 to 60 turns on but

1

Over 258 to 570 included but

Over 18 to 40 turn on but

2

 From 142.5 to 258 inclusive

10 to 18 turns on but



The reduced thickness variation of the zinc coating (SD) should be:

- for steel grade П not more than 16 microns
- for steel grade 1 - no more than 10 microns
- for steel grade 2 - no more than 4 microns



Example of marking galvanized sheet:

Galvanized AO 1.5x1250x2500 GOST 19904-90 08kpVG-MT-UR-2 GOST 14918-80

Galvanized sheet of increased rolling accuracy A, with a cut edge O, 1.5 mm thick, 1250 mm wide, 2500 mm long, according to GOST 19904-90 in terms of gauge, steel grade 08kp, very deep drawing VG, without a crystallization pattern MT, s reduced thickness UR, 2nd steel grade of coating, according to GOST 14918-80 (Sheet galvanized sheet from continuous lines).

Galvanized steel sheet is designed for cold forming, for painting, for the manufacture of stamped parts, containers and other metal products.

The theoretical calculation of the number of square meters in a ton of galvanized sheet, weight 1m2 galvanized steel sheet .

Thickness of galvanized sheet, mm

The number of square meters in 1tn

Weight m2 galvanized sheet

Galvanized sheet 0.5 mm

242,42

4,13

Galvanized sheet 0.55 mm

221,36

4,52

Galvanized sheet 0,7 mm

175,59

5,70

Galvanized sheet 0.8 mm

154,32

6,48

Galvanized sheet 1 mm

124,22

8,05

Galvanized steel sheet 1.2 mm

103,95

9,62

Galvanized sheet 1,5 mm

83,51

11,97

Galvanized sheet 2 , 0 mm

62,89

15,90

Galvanized steel sheet 2.5 mm

50,45

19,82

alvanized sheet 3,0 mm

42,46

23,68



Buy galvanized sheet

You can get a galvanized steel sheet from us of all types produced from warehouses of branches, warehouses of the Moscow region or directly from the factory. We provide services for metal sheet cutting, delivery and picking. Availability, dimensions of galvanized sheet, thickness of galvanized sheet and the price of galvanized sheet per ton can be found on the website in the price list for galvanized sheet . Specify the price of galvanized steel sheet per piece, the weight of galvanized sheet , do the calculation of the quantity, draw up an invoice and make a request, clarify payment options and request a certificate for a galvanized sheet - please contact the manager by calling
